Product Details

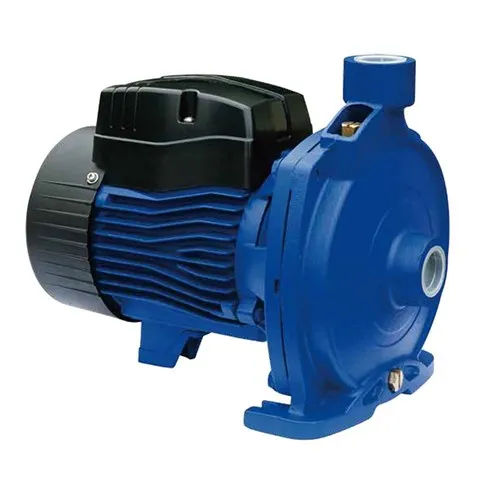

＋Bianco FC75M 0.75kW Single Stage Centrifugal Cast Iron Pump (100LPM/360kPa) 240v
Horizontal single stage cast iron centrifugal pumps supplied ready to install. Used especially for water transfer. Suitable for industrial washdown, water transfer and tank filling, HVAC, circulation and pressure boosting.
Aplications
- Suitable for industrial washdown, water transfer and tank filling.
- Suitable for fire fighting, HVAC, circulation and pressure boosting.

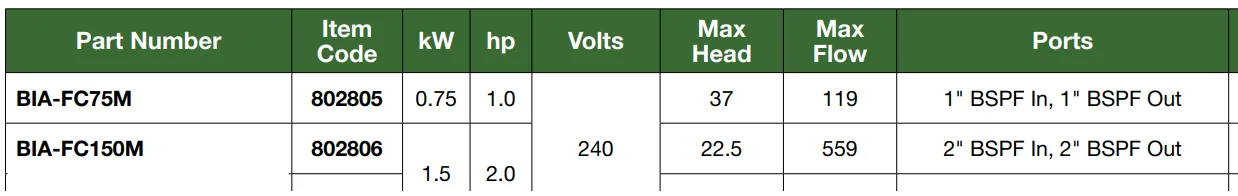

Specifications
| Brand | Bianco Pumpz |
| Product Type | Single Stage Cast Iron Centrifugal Pump |
| Suitable For | Clean Water |
| Bar | 3.6 Bar |
| Amps | 5.5 Amps |
| Flow Range Category | b. 100 - 199 L/min |
| Flow Rate (L/min) | 100 L/min |
| Hp | 1.0 Hp |
| Kilo Watts | 0.75 kW |
| Head Range Category | a. 0 - 39 m |
| Max Head (m) | 36 m |
| Port Size Inlet | 1" Inlet |
| Port Size Outlet | 1" Outlet |
| Powered | Electric |
| Warranty (months) | 24 Months |
| Volts | 240 V |
Features
- Corrosion resistant cast iron pump body and bracket cover with *cataphoresis treatment, and 304 stainless steel impeller and shaft.
- Mechanical shaft seal.
- TEFC motors.
- Motor support foot.
(*Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance.)
